Access panels that are above the rest

High Grade Aluminium | Finished or Unfinished

summit access panels

Simple to install, Summit low-profile trap doors are made from high-grade aluminium and feature easy-snap lock access.

Download our catalogue

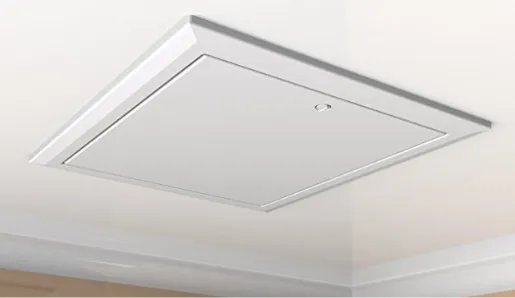

Finished Access Panel

Available in 400 x 400mm and 600 x 600mm.
Concealed snap lock: push to open/close.
Powder-coated galvanized-steel frame and door.
Steel bar hinge.

Add to Quote

Unfinished Access Panel

Available in 400 x 400mm and 600 x 600mm.
Concealed snap lock: push to open/close.
Powder-coated aluminium frame with 12.5mm gypsum moisture-resistant board.
Door to be skimmed & painted.

Add to Quote

Installation guidelines for access panels

  • Remove the door from the frame.
  • Create an opening within the plasterboard wall or ceiling by drawing around the inner rim of the
  • Summit Trap Door – allow for an extra 5mm.
  • Cut opening using a saw, and install the frame in the ceiling or wall.
  • Ensure the frame is set square into the opening. Fix frame through the face of the plasterboard using approved screws (minimum two fixings per side, and maximum 300mm centres).
  • For a secure fix, provide additional framing that is fixed to the ceiling framework around the opening. Re-fit door into frame and check operation prior to finishing.
  • Remove the door.
  • Skim & paint around the fitted frame
  • Ensure all jointing material has been removed from the frame and door edge, as this will affect the door’s operation
